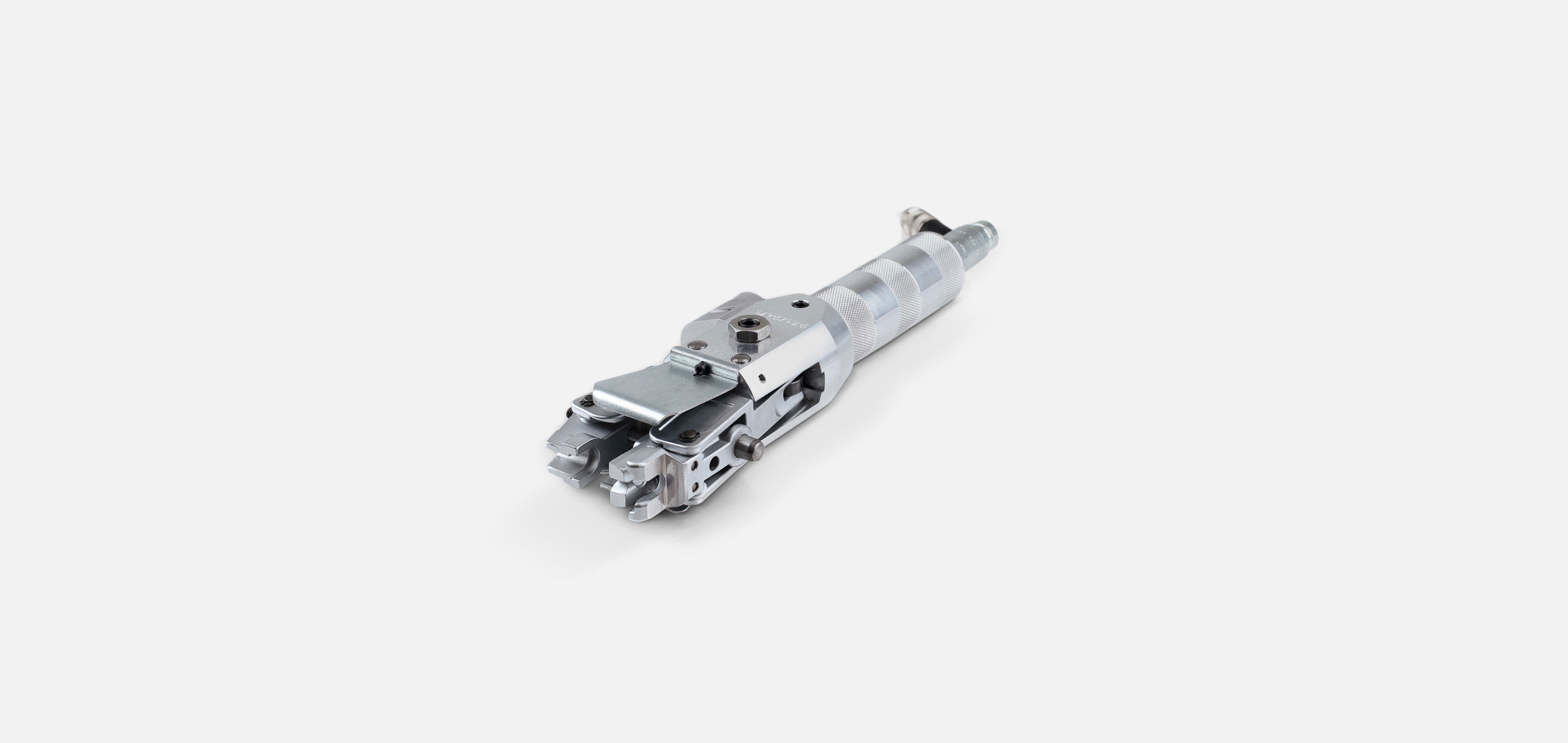

Hydraulic Assembly ToolsLOKTOOL HAT

[Translate to English:]

The hydraulic assembly tool enables the LOKRING connection of tubes with similar or different tube diameters. The production of the joining requires no special preparation of the tubes and can be carried out by unskilled workers. The tool is connected to the LOKRING hydraulic aggregate by a 2.8m hydraulic hose. The sizes of the clamping and assembly jaws are dependent on the dimensions of the tubes that are to be joined.

Videos

Technical Data

    • Max. tube outside diameter: 7/8“ / 28 mm*
    • Max. tube wall thickness: 1.5 mm*
    • Operating pressure: up to 300 bar
    • Assembly time: approx. 2 sec.
    • Weight: approx. 3.0 kg
    *Further dimensions on special request.

      Application

      • OEM | Production
