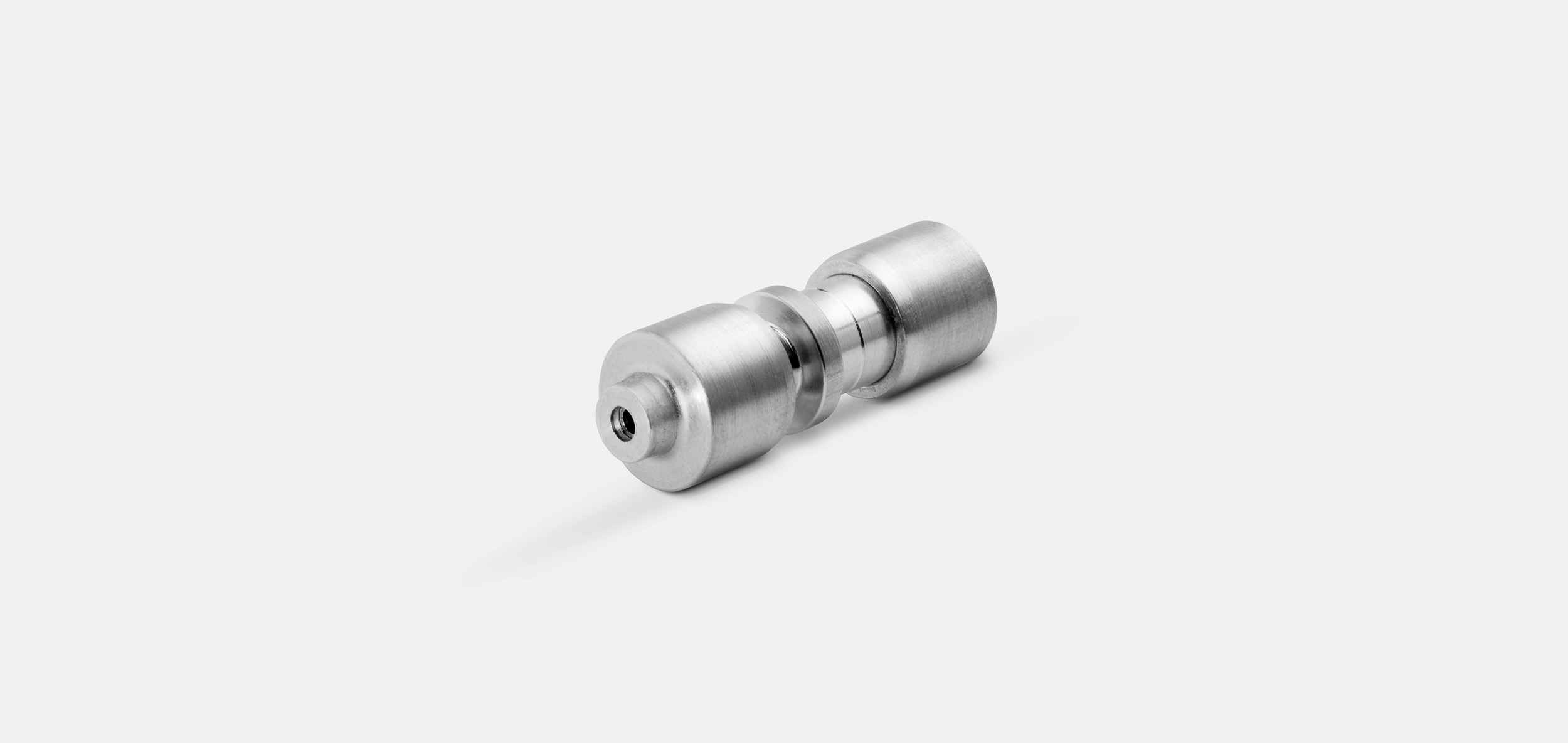

LOKRING Straight Al Reducing Connectors Type 00LOKRING NR Al 00

[Translate to English:]

For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with different tube outer diameters.

Videos

Technical Data

    • Max. operating pressure: 50 bar (720 psi)
    • Admissible refrigerants: Suitable for all HCs, HFCs and mixtures. Not suitable for NH3.
    • Temperature range:-50°C up to 150°C (-58°F up to 302°F)
    • Tube diameter range: 1.8 to 9 mm (5/64" to 5/16")
    • Minimum tube wall thickness: 0.5 mm

    Application

    • Repair of Refrigeration Appliances

    Material Combinations

    >>>Al-Al
    >>>Al-Cu
    >>>Al-St

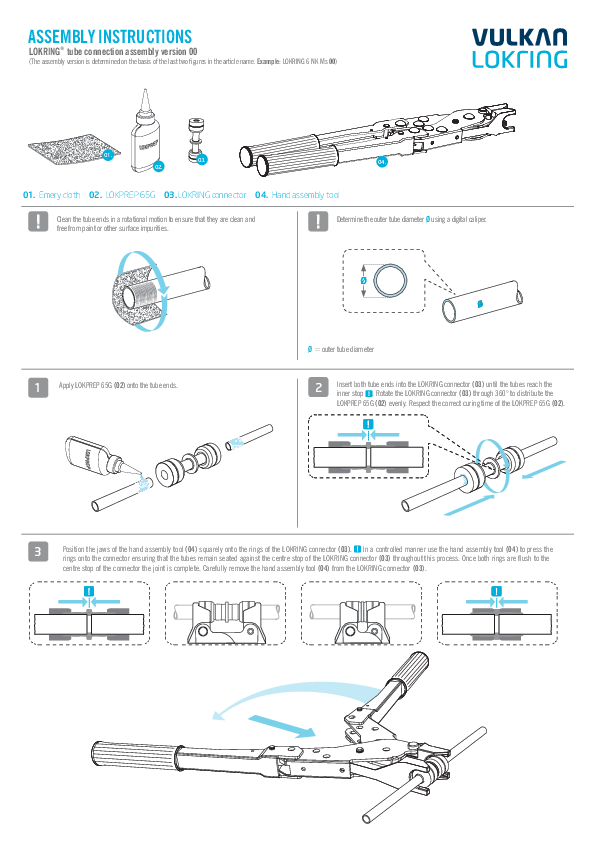

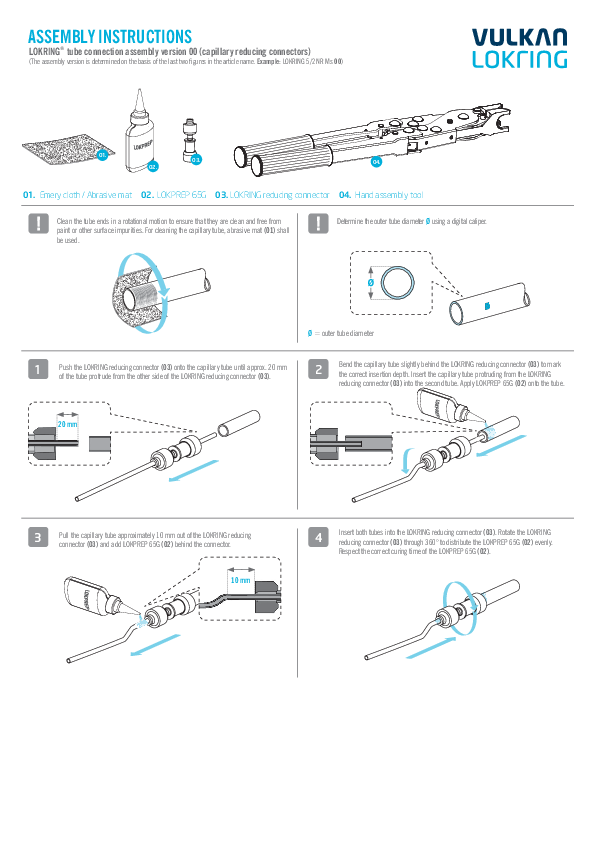

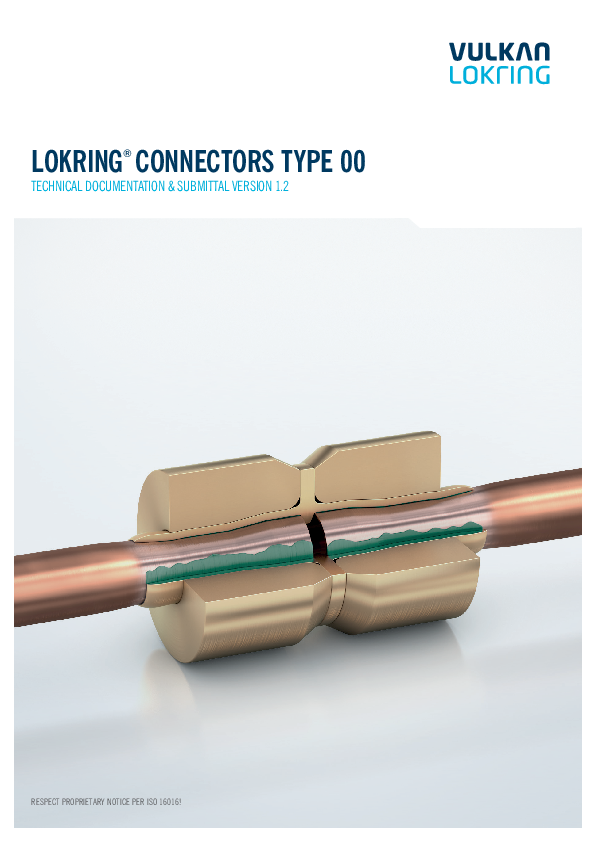

    Downloads
