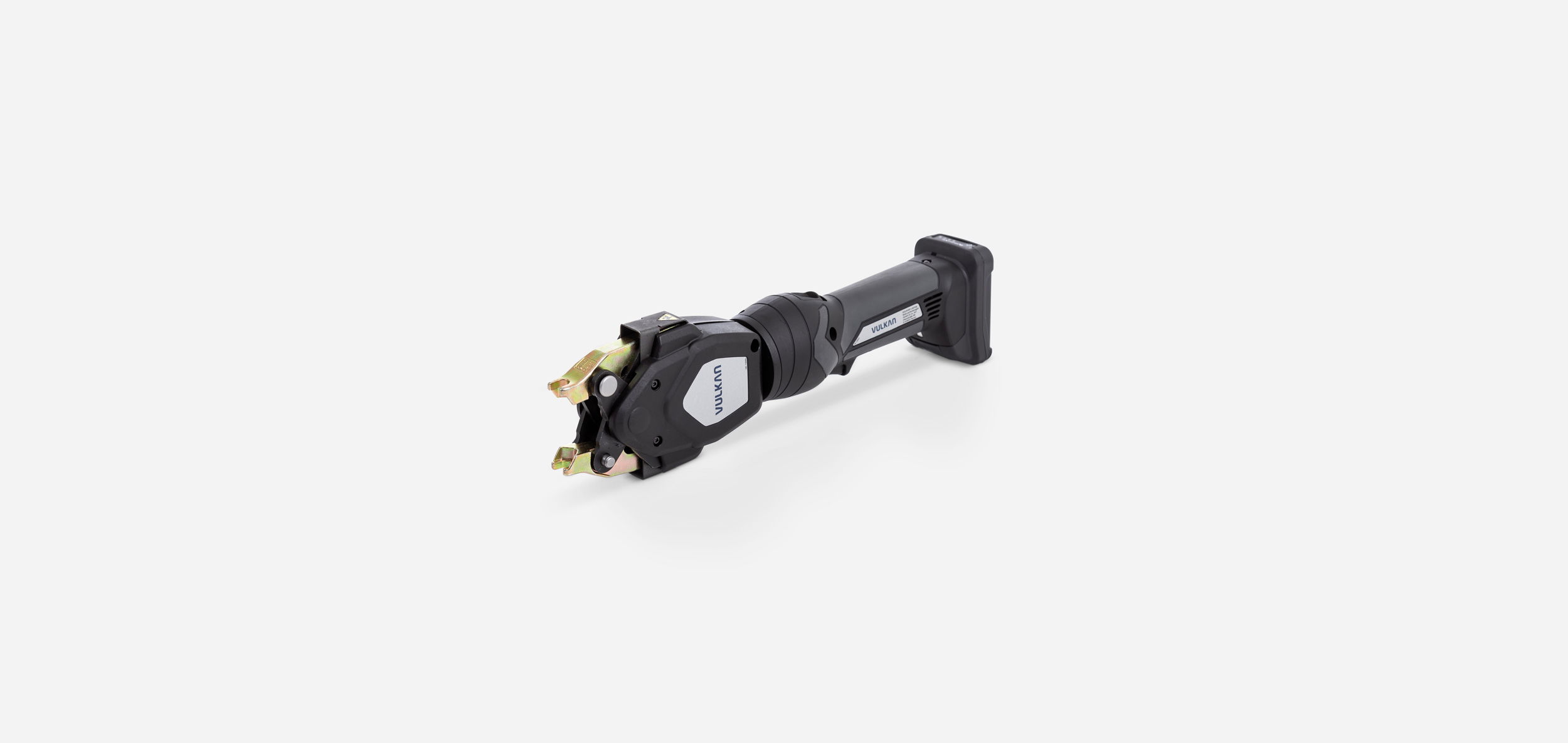

Cordless Assembly Tool LOKPRESS MiniLOKPRESS Mini Set-EU

[Translate to English:]

Features:


  • Lightweight for one-hand operation
  • Compact design for narrow space operation
  • Automatic stop after assembly for battery power saving
  • LED for work area illumination
  • Made in Germany


For LOKRING connectors:


  • Type 00 from 1.6 to 11 mm (1/16" to 3/8")
  • Type Ms 50 from 6 to 12.7 mm (1/4" to 1/2")
  • Type Al 50 from 6 to 16 mm (1/4" to 5/8")


NOTE: The LOKPRESS Mini comes without assembly jaws.

Videos

Technical Data

    • Dimensions incl. rechargeable battery (H x W x L): approx. 111 x 71 x 393 mm
    • Operating temperature: -10°C up to 40°C (14°F up to 104°F)
    • Battery charger: 100-240V~ | 50-60Hz | 35W
    • Rechargeable battery: 10.8V / 1.5 Ah Li-Ion
    • Recharge time: 40 min.
    • Number of pressings: Minimum 100
    • Weight incl. rechargeable battery: approx. 2.2 kg (4.85 lb)

    Application

    • OEM | Production
    • Repair of Refrigeration Appliances

    Downloads

    Equipment

    A black, rectangular suitcase with a handle on the top stands on a light grey, plain background. There is a white logo on the front.

    LOKPRESS Mini PC

    Robust plastic case for easy transportation of the LOKPRESS Mini tool set.

    …
    go to product
    A metallic component lies on a light grey surface. It is gold-coloured and consists of several cylindrical sections separated by narrow rings. One end has a circular opening, while the other end is closed. The surface is smooth and shiny.

    LOKRING NK Ms 00

    For connecting copper and/or steel tubes with identical tube outer diameters.

    …
    go to product
    A metallic component lies on a light grey surface. It consists of a copper-coloured, straight tube and a gold-coloured, solid head at the end. The head is irregularly shaped with several small openings and details. The surfaces are smooth and shiny.

    LOKRING NK Al 00

    For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with identical…

    go to product
    A metallic component lies on a light grey surface. It is predominantly silver in colour and consists of several cylindrical sections. In the centre are two gold-coloured rings that enclose the component. One end has a circular opening, while the other end is closed. The surface is smooth and shiny.

    LOKRING NK Ms 50

    For connecting copper and/or steel tubes with identical tube outer diameters.

    …
    go to product
    A metallic component lies on a light grey surface. It is silver in colour and consists of several cylindrical sections separated by narrow rings. One end has a circular opening, while the other end is closed. The surface is smooth and shiny.

    LOKRING NK Al 50

    For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with identical…

    go to product
