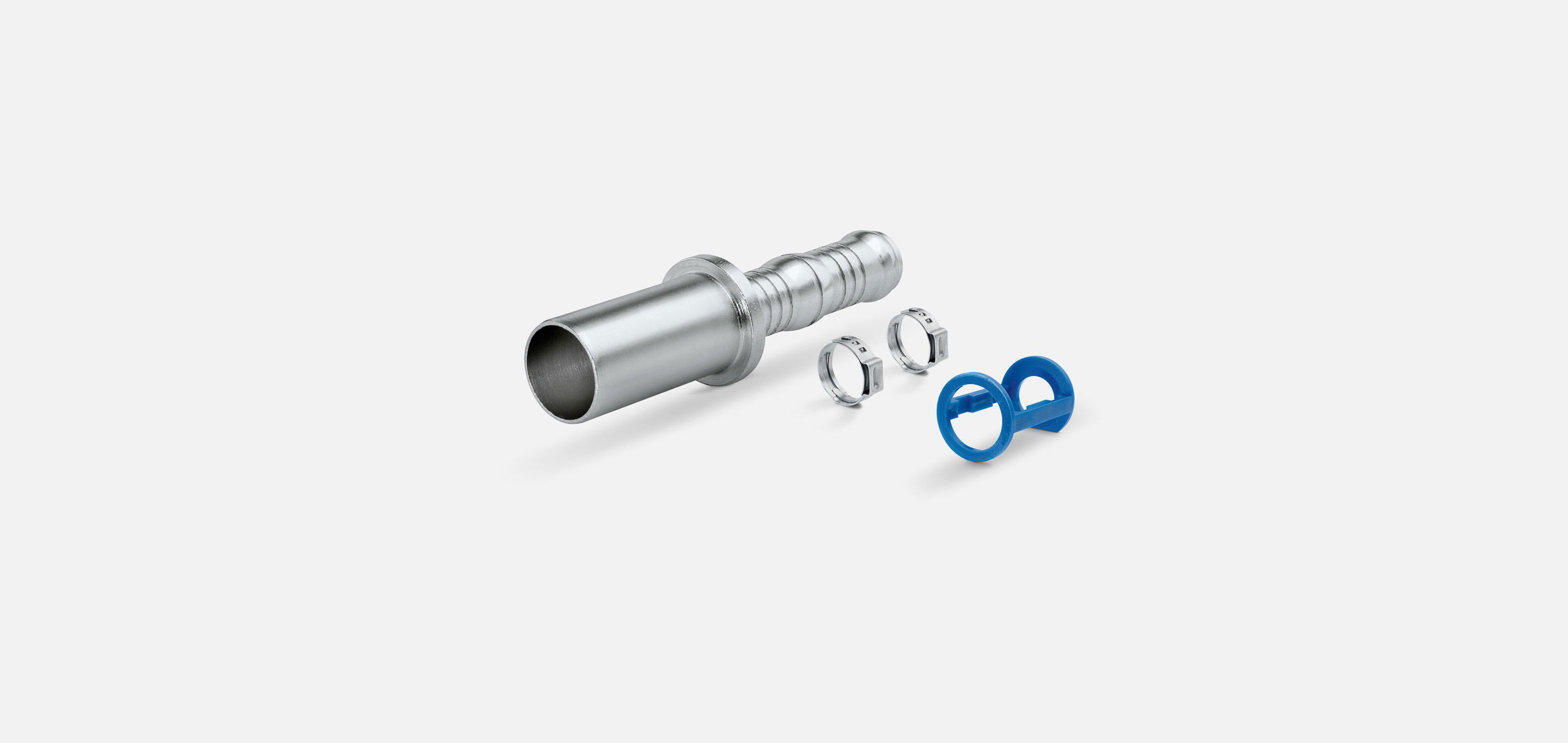

LOKCLIP Hose-to-Tube ConnectorsLOKCLIP Al

[Translate to English:]
  • For assembling hose-to-tube connections.
  • Can be used with LOKRING aluminium connectors and reducing connectors.
  • Plastic clip holder and two stainless steel clips included.


IMPORTANT: The LOKCLIP hose connections have been specially designed for the LOKCLIP RH refrigerant hose. We cannot accept any liability for use with other refrigerant hoses.

Videos

Technical Data

    • Max. operating pressure: 25 bar (360 psi).
    • Admissible refrigerants: Suitable for R134a and HFO-1234y. Other refrigerants on request.
    • Temperature range: -40°C up to 135°C (-40°F up to 275°F).
    • Tube diameter range: 8 to 19 mm (5/16" to 3/4").
    • Hose sizes: 06 up to 12

    Application

    • Repair of Vehicle A/C systems
